 Profile Sections with Size Range

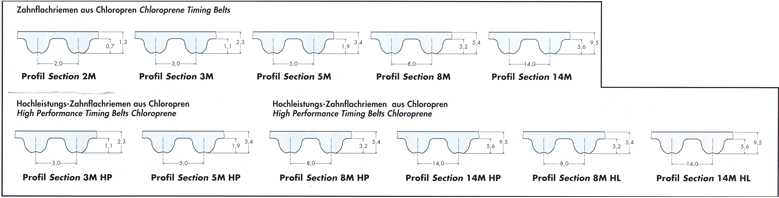

Optibelt Omega HP / HL


Optibelt Omega HP / HL
Optibelt Omega HP / HL




Optibelt Omega HP Linear - Drive Solutions with timing belts

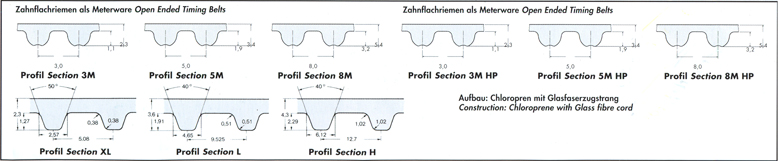

Optibelt Omega HP Linear / ZR Linear

Optibelt OMEGA linear timing belting is open-ended timing belting made from rubber with a glass fibre tension cord manufactured out of sleeves using the spiral cut method.
• high tensile strength
• low stretch
• high positioning stability
• less noise than Optibelt HID®, Optibelt timing belts and polyurethane timing belts
• angular misalignment max. 0.67° (dependent on the width)
• maintenance-free
• for medium to high loading
• in accordance with ISO 13050
• standard roll length 30 m

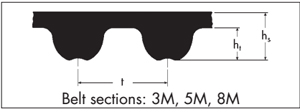

Belt Section

Standard range;
sections, widths

• OMEGA 3M 9
• OMEGA 5M 10, 5M 15, 5M 25
• OMEGA 8M 10, 8M 15, 8M 20, 8M 25
• OMEGA HP 3M 9
• OMEGA HP 5M 10, 5M 15, 5M 25
• OMEGA HP 8M 10, 8M 15, 8M 20, 8M 25
Special constructions
• antistatic conforming to ISO 9563
• enhanced oil resistance
• expanded temperature range

Order example:
for 30 meters OMEGA HP, profile 8M 15 mm: OMEGA HP 15, 30 m further sizes on request

Optibelt Omega HP Linear / ZR Linear


Optibelt Omega ZR Linear - Drive Solutions with timing belts


Optibelt Omega ZR Linear

Optibelt ZR linear timing belting with trape-zoidal teeth sections are manufactured out of sleeves using the spiral cut method. This open-ended timing belting has a glass fibre tension cord.
• high tensile strength
• angular misalignment max. 0.67° (dependent on the width)
• maintenance-free
• approved worldwide
• for low loading
• sections standardised according to ISO 5296 / ISO 5294
• standard roll length 30 m

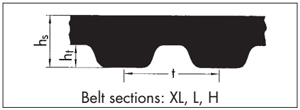

Belt Section

Standard range;
sections, widths

• XL 025, XL 037, XL 050
• L 050, L 100
• H 075, H 100
Order example:
• Examples of product applications
• Door and gate drives
• Robots
• Positioning Drives

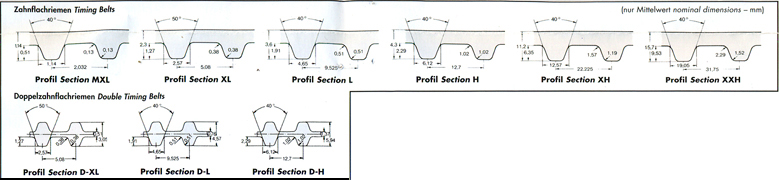

Optibelt ZR / ZR D


Optibelt ZR / ZR D
Optibelt ZR / ZR D

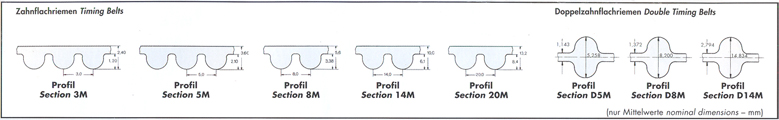

Optibelt Omega HTD
Optibelt Omega HTD

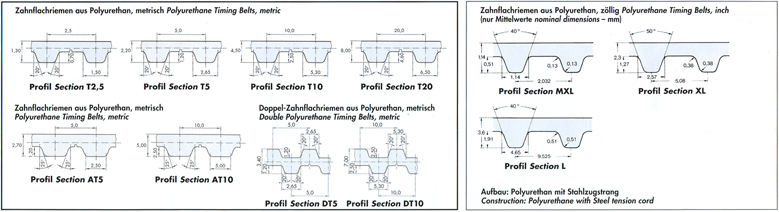

Optibelt ALPHA
Optibelt ALPHA

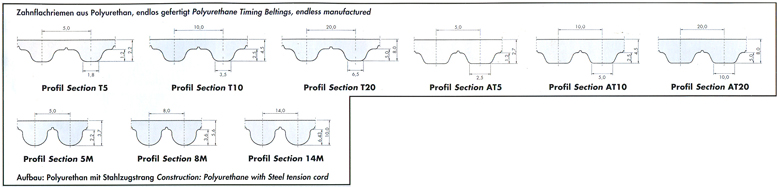

Optibelt ALPHA Flex
Optibelt ALPHA Flex






We are Authorized Distributor for Optibelt Power Transmission, Germany, Rubber Timing Belts, Timing Pulleys, Shaft Locking Bushes, Keyless Locking Elements, Timing Belt Pulleys, Polyurethane Belts ( PU Timing Belts ), Poly V Belts, Variable Speed Belts, Round Cord Belts, V Belts, Open Ended Belts ( Linear Belts ), Timing Belts Clamping Plates, Oil Seals, O Ring
and our setup is Located at Shukrawar Peth, Pune ( Maharashtra, India )
